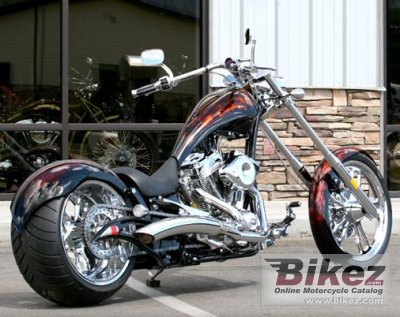

2009 Big Bear Choppers Sled 114 EFI X-Wedge. Picture credits - Big Bear Choppers.
Submit more pictures.
|
|
| Big Bear Choppers' profilation of this bike |
| The backbone of what makes us unique and powerful is the fact that we design AND manufacture every bit of the frame, tanks and fenders, bars and frontends, foot controls and other proprietary components - all for the purpose of an absolute motorcycle. |
|
General information |
|
Motorcycle name
|
Big Bear Choppers Sled 114 EFI X-Wedge |
|
Year model
|
2009 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 35400. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1868.2 ccm (114.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
97.0 HP (70.8 kW)) |
|
Torque
|
153.2 Nm (15.6 kgf-m or 113.0 ft.lbs) |
|
Bore x stroke
|
104.8 x 108.0 mm (4.1 x 4.3 inches) |
|
Fuel system
|
Injection. S and S Closed-Loop Electronic Fuel Injection |
|
Lubrication system
|
S and S Dual Gerotor oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
BBC Sled Softail |
|
Rake (fork angle)
|
40.0° |
|
Trail
|
95 mm (3.8 inches) |
|
Front suspension
|
BBC Smooth Mount Hidden Axle |
|
Rear suspension
|
Progressive |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
90/80-21 |
|
Rear tire
|
300/80-18 |
|
Front brakes
|
Single disc. P.M. 4-piston calipers |
|
Rear brakes
|
Single disc. BBC P.M. 4-piston calipers |
|
Physical measures and capacities |
|
Dry weight
|
317.5 kg (700.0 pounds) |
|
Power/weight ratio
|
0.3055 HP/kg |
|
Seat height
|
508 mm (20.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2921 mm (115.0 inches) |
|
Wheelbase
|
2235 mm (88.0 inches) |
|
Fuel capacity
|
12.30 litres (3.25 US gallons) |
|
Other specifications |
|
Color options
|
Gross Black, satin black, charcoal, silver, black cherry, candy red, firecracker red, orange, blue. Various paint schemes. |
|
Comments
|
Model also called BBC Sled Chopper 114 SMOOTH™ EFI X-Wedge. |
