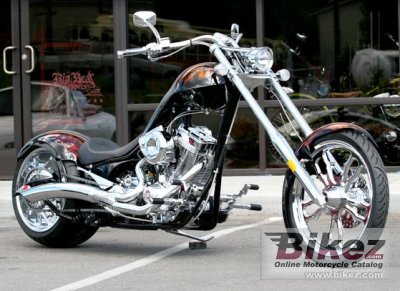

| Big Bear Choppers' profilation of this bike |
| Our Sled Chopper is the new generation of an American chopper with its cutting edge drop seat stretched frame, huge 300mm rear tire and an innovative fuel tank. We designed this scooter for the customer that wants a chopper style motorcycle with creative, smooth lines at a reasonable price tag. |
|
General information |
|
Model name
|
Big Bear Choppers Sled 100 Carb |
|
Year of manufacture
|
2009 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 30900. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
1638.8 ccm (100.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
95.0 HP (69.3 kW)) |
|
Torque
|
149.2 Nm (15.2 kgf-m or 110.0 ft.lbs) |
|
Bore x stroke
|
104.8 x 108.0 mm (4.1 x 4.3 inches) |
|
Fuel system
|
Carburettor |
|
Lubrication system
|
S and S High volume oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
BBC Sled Softail |
|
Rake (fork angle)
|
40.0° |
|
Trail
|
95 mm (3.8 inches) |
|
Front suspension
|
BBC Smooth Mount Hidden Axle |
|
Rear suspension
|
Progressive |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
90/80-21 |
|
Rear tire
|
300/80-18 |
|
Front brakes
|
Single disc. P.M. 4-piston calipers |
|
Rear brakes
|
Single disc. BBC P.M. 4-piston calipers |
|
Physical measures and capacities |
|
Dry weight
|
317.5 kg (700.0 pounds) |
|
Power/weight ratio
|
0.2992 HP/kg |
|
Seat height
|
508 mm (20.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2921 mm (115.0 inches) |
|
Wheelbase
|
2235 mm (88.0 inches) |
|
Fuel capacity
|
15.14 litres (4.00 US gallons) |
|
Other specifications |
|
Color options
|
Gross Black, satin black, charcoal, silver, black cherry, candy red, firecracker red, orange, blue. |
|
Starter
|
Electric |
|
Comments
|
Model also called BBC Sled Chopper 100 SMOOTH™ Carb Evolution. |
