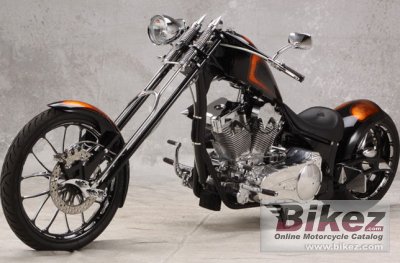

2010 Big Bear Choppers Rage 100 Smooth Carb. Picture credits - Big Bear Choppers.
Submit more pictures.
|
|
| Big Bear Choppers' profilation of this bike |
| The Rage is desired by enthusiasts who want to ride a Big Bear Chopper with a shorter wheelbase and less rake than the others in the fleet, for more responsive handling. It shares the same components high end as our famous Venom ProStreet featuring the polished proprietary 100 SMOOTH™ low vibration engine. |
|
General information |
|
Motorcycle name
|
Big Bear Choppers Rage 100 Smooth Carb |
|
Year
|
2010 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 29900. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1638.8 ccm (100.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
95.0 HP (69.3 kW)) |
|
Torque
|
151.9 Nm (15.5 kgf-m or 112.0 ft.lbs) |
|
Fuel system
|
Carburettor |
|
Ignition
|
Dynatech 2000i |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
BBC Rage Softail. BBC Venom swingarm. |
|
Rake (fork angle)
|
43.0° |
|
Trail
|
95 mm (3.8 inches) |
|
Front suspension
|
BBC Springer |
|
Rear suspension
|
Progressive suspension |
|
Front tire
|
90/80-21 |
|
Rear tire
|
250/80-18 |
|
Front brakes
|
Single disc. P.M. 4-piston calipers |
|
Rear brakes
|
Single disc. BBC-PM 4-piston caliper BrakeDrive system |
|
Physical measures and capacities |
|
Dry weight
|
317.5 kg (700.0 pounds) |
|
Power/weight ratio
|
0.2992 HP/kg |
|
Seat height
|
508 mm (20.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2794 mm (110.0 inches) |
|
Wheelbase
|
2083 mm (82.0 inches) |
|
Fuel capacity
|
14.67 litres (3.88 US gallons) |
|
Oil capacity
|
5.00 litres (5.28 US quarts) |
|
Other specifications |
|
Color options
|
Gross Black, satin black, charcoal metallic, silver metallic, black cherry, candy red, firecracker red, orange pearl, electric blue, pearl white or custom paint schemes. |
|
Starter
|
Electric |
|
Comments
|
Proprietary patented mid-section stretch in the frame for better weight distribution and handling. Distinctive large diameter single radius downtube. Standard neck height with a conservative 43° rake for an agile and well-coordinated movement. Right side drive. |
