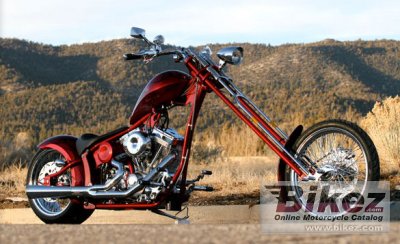

2010 Big Bear Choppers Merc Softail 100 Smooth Carb. Picture credits - Big Bear Choppers.
Submit more pictures.
|
|
| Big Bear Choppers' profilation of this bike |
| Want the same mean and nasty look of the Merc Rigid, but still need your kidneys? Then the Merc Softail is the ride for you. Thanks to the rear suspension, this mad Merc allows you to still make a bold statement on the road while experiencing a much smoother ride than it’s hard brother. |
|
General information |
|
Model
|
Big Bear Choppers Merc Softail 100 Smooth Carb |
|
Year
|
2010 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 27400. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1638.8 ccm (100.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
95.0 HP (69.3 kW)) |
|
Torque
|
149.2 Nm (15.2 kgf-m or 110.0 ft.lbs) |
|
Bore x stroke
|
101.6 x 101.6 mm (4.0 x 4.0 inches) |
|
Fuel system
|
Carburettor. S and S Super E Carburetor |
|
Ignition
|
S and S |
|
Lubrication system
|
S and S high volume oil pump |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Exhaust system
|
Chrome Tuned Exhaust |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
BBC Merc Rigid Softail |
|
Rake (fork angle)
|
48.0° |
|
Trail
|
95 mm (3.8 inches) |
|
Front suspension
|
BBC Merc Springer |
|
Front wheel travel
|
76 mm (3.0 inches) |
|
Rear suspension
|
Softail Style |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
90/80-21 |
|
Rear tire
|
250/80-18 |
|
Front brakes
|
Single disc. 4-piston calipers |
|
Rear brakes
|
Single disc. 4-piston caliper |
|
Physical measures and capacities |
|
Dry weight
|
317.5 kg (700.0 pounds) |
|
Power/weight ratio
|
0.2992 HP/kg |
|
Seat height
|
584 mm (23.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2946 mm (116.0 inches) |
|
Wheelbase
|
2235 mm (88.0 inches) |
|
Fuel capacity
|
22.23 litres (5.87 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
Gross Black, satin black, charcoal metallic, silver metallic, black cherry, candy red metallic, firecracker red, orange pearl, electric blue. |
|
Comments
|
5-Speed Left-Side Drive Polished TransMision. |
