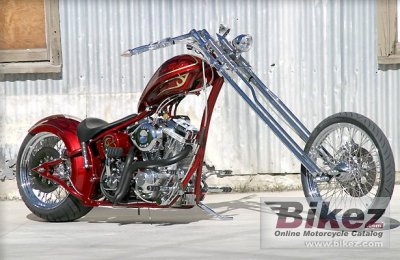

2009 Big Bear Choppers Merc Softail 100 Carb. Picture credits - Big Bear Choppers.
Submit more pictures.
|
|
| Big Bear Choppers' profilation of this bike |
| This beautiful beast is the firstborn among its brothers that launched the Big Bear Choppers brand of motorcycles in 2002. This ambitious motorcycle is built around the 250mm wide tire with a rigid appearance. If you’re in the market for a tough, traditional all American modernistic chopper with today’s technology, look no further. |
|
General information |
|
Motorcycle name
|
Big Bear Choppers Merc Softail 100 Carb |
|
Year
|
2009 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 27400. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
1638.8 ccm (100.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
95.0 HP (69.3 kW)) |
|
Torque
|
149.2 Nm (15.2 kgf-m or 110.0 ft.lbs) |
|
Bore x stroke
|
101.6 x 101.6 mm (4.0 x 4.0 inches) |
|
Fuel system
|
Carburettor. S and S Super E Carburetor |
|
Ignition
|
S and S |
|
Lubrication system
|
S and S high volume oil pump |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
BBC Merc Rigid Softail |
|
Rake (fork angle)
|
48.0° |
|
Trail
|
95 mm (3.8 inches) |
|
Front suspension
|
BBC Merc Springer |
|
Front wheel travel
|
76 mm (3.0 inches) |
|
Rear suspension
|
Softail Style |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
90/80-21 |
|
Rear tire
|
250/80-18 |
|
Front brakes
|
Single disc. 4-piston calipers |
|
Rear brakes
|
Single disc. 4-piston caliper |
|
Physical measures and capacities |
|
Dry weight
|
317.5 kg (700.0 pounds) |
|
Power/weight ratio
|
0.2992 HP/kg |
|
Seat height
|
584 mm (23.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2946 mm (116.0 inches) |
|
Wheelbase
|
2235 mm (88.0 inches) |
|
Fuel capacity
|
22.23 litres (5.87 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
Gross Black, satin black, charcoal metallic, silver metallic, black cherry, candyred metallic, firecracker red, orange pearl, electric blue. |
|
Starter
|
Electric |
