Big Bear Choppers Merc Rigid 100 Smooth Carb 20102010 Big Bear Choppers Merc Rigid 100 Smooth Carb specifications, pictures, reviews and rating |

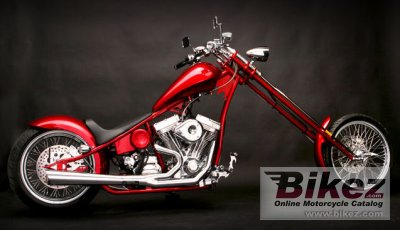

2010 Big Bear Choppers Merc Rigid 100 Smooth Carb. Picture credits - Big Bear Choppers. Submit more pictures.
| Big Bear Choppers' profilation of this bike |
| You and everybody else will be surprised how well this bike takes the corners and its low speed maneuvering. With her radius dual downtube, a bold 48 degree neck rake, spoke wheels, swooping rear frame section, unparalleled curvaceous fuel tank and the long reaching springer, this vintage inspired rigid chopper rolls with new school technology. |
| General information | |
|---|---|
| Model name | Big Bear Choppers Merc Rigid 100 Smooth Carb |
| Year of manufacture | 2010 |
| Type | Custom / cruiser |
| Price as new | US$ 25900. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 1638.8 ccm (100.00 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 95.0 HP (69.3 kW)) |
| Torque | 149.2 Nm (15.2 kgf-m or 110.0 ft.lbs) |
| Bore x stroke | 101.6 x 101.6 mm (4.0 x 4.0 inches) |
| Fuel system | Carburettor. S and S Super E Carburetor |
| Ignition | S and S |
| Lubrication system | S and S high volume oil pump |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Exhaust system | Chrome Tuned Exhaust |
| Chassis, suspension, brakes and wheels | |
| Frame type | BBC Merc Rigid |
| Rake (fork angle) | 48.0° |
| Trail | 95 mm (3.8 inches) |
| Front suspension | BBC Merc Springer |
| Front wheel travel | 76 mm (3.0 inches) |
| Rear suspension | Rigid |
| Rear wheel travel | 76 mm (3.0 inches) |
| Front tire | 90/80-21 |
| Rear tire | 250/80-18 |
| Front brakes | Single disc. 4-piston calipers |
| Rear brakes | Single disc. 4-piston caliper |
| Physical measures and capacities | |
| Dry weight | 294.8 kg (650.0 pounds) |
| Power/weight ratio | 0.3222 HP/kg |
| Seat height | 584 mm (23.0 inches) If adjustable, lowest setting. |
| Overall length | 2946 mm (116.0 inches) |
| Wheelbase | 2235 mm (88.0 inches) |
| Fuel capacity | 14.66 litres (3.87 US gallons) |
| Oil capacity | 4.70 litres (4.97 US quarts) |
| Other specifications | |
| Color options | Gross Black, satin black, charcoal metallic, silver metallic, black cherry, candy red metallic, firecracker red, orange pearl, electric blue. Standard or Custom Paint Scheme. |
| Starter | Electric |
