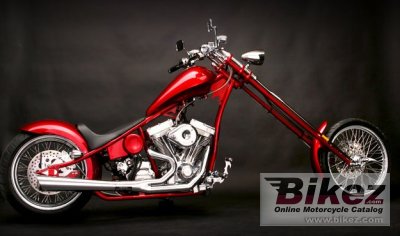

2009 Big Bear Choppers Merc Rigid 100 Carb. Picture credits - Big Bear Choppers.
Submit more pictures.
|
|
| Big Bear Choppers' profilation of this bike |
| This bike is our most aggressive and in your face design, packed with a hard core attitude. Don’t be concerned about that 20” over stock springer frontend, we’ve dialed in the frame and springer geometry so it feels and handles extremely well considering the wheelbase. |
|
General information |
|
Model
|
Big Bear Choppers Merc Rigid 100 Carb |
|
Year of manufacture
|
2009 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 25900. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1638.8 ccm (100.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
95.0 HP (69.3 kW)) |
|
Torque
|
149.2 Nm (15.2 kgf-m or 110.0 ft.lbs) |
|
Bore x stroke
|
101.6 x 101.6 mm (4.0 x 4.0 inches) |
|
Fuel system
|
Carburettor. S and S Super E Carburetor |
|
Ignition
|
S and S |
|
Lubrication system
|
S and S high volume oil pump |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Exhaust system
|
Chrome 2 into 1 Baffled EPA Approved |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
BBC Merc Rigid |
|
Rake (fork angle)
|
48.0° |
|
Trail
|
95 mm (3.8 inches) |
|
Front suspension
|
BBC Merc Springer |
|
Front wheel travel
|
76 mm (3.0 inches) |
|
Rear suspension
|
Softail Style |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
90/80-21 |
|
Rear tire
|
250/80-18 |
|
Front brakes
|
Single disc. 4-piston calipers |
|
Rear brakes
|
Single disc. 4-piston caliper |
|
Physical measures and capacities |
|
Dry weight
|
294.8 kg (650.0 pounds) |
|
Power/weight ratio
|
0.3222 HP/kg |
|
Seat height
|
584 mm (23.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2946 mm (116.0 inches) |
|
Wheelbase
|
2235 mm (88.0 inches) |
|
Fuel capacity
|
14.66 litres (3.87 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
Gross Black, satin black, charcoal metallic, silver metallic, black cherry, candyred metallic, firecracker red, orange pearl, electric blue. |
|
Starter
|
Electric |
