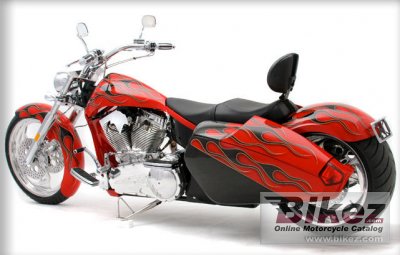

2010 Big Bear Choppers GTX Standard 100 Smooth EFI. Picture credits - Big Bear Choppers.
Submit more pictures.
|
|
| Big Bear Choppers' profilation of this bike |
| Our proprietary BBC/S and S® 100 SMOOTH™ engine in front of a bomb proof Baker® 6-speed transMision with our tough, sleek exclusive primary, packed in a brilliantly engineered vehicle; these motorcycles are designed to be ridden to Sturgis and back. |
|
General information |
|
Model name
|
Big Bear Choppers GTX Standard 100 Smooth EFI |
|
Model year
|
2010 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 34900. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1638.8 ccm (100.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
95.0 HP (69.3 kW)) |
|
Torque
|
149.2 Nm (15.2 kgf-m or 110.0 ft.lbs) |
|
Bore x stroke
|
101.6 x 101.6 mm (4.0 x 4.0 inches) |
|
Fuel system
|
Injection. EFI |
|
Lubrication system
|
S and S High Volume Oil Pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
BBC GTX Softail |
|
Rake (fork angle)
|
36.0° |
|
Trail
|
95 mm (3.8 inches) |
|
Front suspension
|
BBC Smooth Mount Hidden Axle |
|
Rear suspension
|
Progressive |
|
Front tire
|
120/80-21 |
|
Rear tire
|
300/50-18 |
|
Front brakes
|
Double disc. P.M. 4-piston calipers |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
385.6 kg (850.0 pounds) |
|
Power/weight ratio
|
0.2464 HP/kg |
|
Seat height
|
648 mm (25.5 inches) If adjustable, lowest setting. |
|
Wheelbase
|
2159 mm (85.0 inches) |
|
Fuel capacity
|
19.30 litres (5.10 US gallons) |
|
Other specifications |
|
Color options
|
Gross Black, satin black, charcoal metallic, silver metallic, black cherry, candy red, firecracker red, orange pearl, electric blue, pearl white or custom paint schemes. |
|
Starter
|
Electric |
|
Comments
|
Innovative and patented 2-up seating configuration inside the frame for centralized weight distribution.
Dropped neck height for a low prostreet style stance that enables low speed confidence and handling. |
