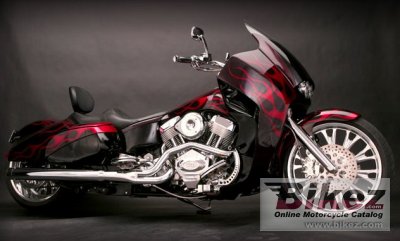

2009 Big Bear Choppers G.T.X. Fairing 114. Picture credits - Big Bear Choppers.
Submit more pictures.
|
|
| Big Bear Choppers' profilation of this bike |
| One of the proprietary and patented characteristics of this bike is the position of the passenger sitting in front of the rear wheel. This seating position places more weight in the center of the vehicle to produce better handling and comfort for both the operator and passenger. |
|
General information |
|
Motorcycle name
|
Big Bear Choppers G.T.X. Fairing 114 |
|
Year of manufacture
|
2009 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 40900. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1868.2 ccm (114.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
97.0 HP (70.8 kW)) |
|
Torque
|
153.2 Nm (15.6 kgf-m or 113.0 ft.lbs) |
|
Bore x stroke
|
104.8 x 108.0 mm (4.1 x 4.3 inches) |
|
Fuel system
|
Injection. S and S® closed-loop electronic fuel injection |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
BBC GTX Softail |
|
Rake (fork angle)
|
36.0° |
|
Trail
|
95 mm (3.8 inches) |
|
Front suspension
|
BBC Smooth Mount Hidden Axle |
|
Rear suspension
|
Progressive |
|
Front tire
|
120/80-21 |
|
Rear tire
|
300/50-18 |
|
Front brakes
|
Double disc. 4-piston calipers |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
386.5 kg (852.0 pounds) |
|
Power/weight ratio
|
0.2510 HP/kg |
|
Seat height
|
648 mm (25.5 inches) If adjustable, lowest setting. |
|
Wheelbase
|
2159 mm (85.0 inches) |
|
Fuel capacity
|
19.30 litres (5.10 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Model also called BBC-S and S 114 SMOOTH™ EFI X-Wedge. |
