General information |
|
Motorcycle name
|

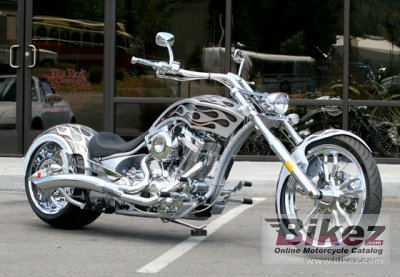

Big Bear Choppers Athena ProStreet 114 X-Wedge |
|
Year of manufacture
|
2009 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 37400. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1868.2 ccm (114.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
97.0 HP (70.8 kW)) |
|
Torque
|
153.2 Nm (15.6 kgf-m or 113.0 ft.lbs) |
|
Bore x stroke
|
104.8 x 108.0 mm (4.1 x 4.3 inches) |
|
Fuel system
|
Injection. S and S Electronic Fuel Injection |
|
Lubrication system
|
S and S High volume oil pump |
|
Gearbox
|
6-speed |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Softail type |
|
Rake (fork angle)
|
40.0° |
|
Trail
|
95 mm (3.8 inches) |
|
Front suspension
|
BBC Smooth Mount Hidden Axle |
|
Rear suspension
|
Progressive |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
90/80-21 |
|
Rear tire
|
300/80-18 |
|
Front brakes
|
Single disc. PM. 4-piston calipers |
|
Rear brakes
|
Single disc. BBC-PM 4-piston caliper BrakeDrive system |
|
Physical measures and capacities |
|
Dry weight
|
317.5 kg (700.0 pounds) |
|
Power/weight ratio
|
0.3055 HP/kg |
|
Seat height
|
508 mm (20.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2870 mm (113.0 inches) |
|
Wheelbase
|
2184 mm (86.0 inches) |
|
Fuel capacity
|
13.72 litres (3.62 US gallons) |
|
Other specifications |
|
Color options
|
Gross Black, satin black, charcoal metallic, silver, black cherry, candy red, firecracker red, orange, electric blue. |
|
Comments
|
Model also called BBC Athena ProStreet 114 SMOOTH™ EFI X-Wedge. Various forged aluminium wheel and paint scheme options. |
