| General information |
|---|

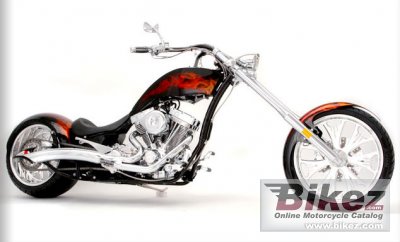

| Model: | Big Bear Choppers Athena 100 Smooth Carb |
| Year: | 2010 |
| Category: | Custom / cruiser |
| Price as new: | US$ 33400. MSRP depend on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 1638.8 ccm (100.00 cubic inches) |
| Engine type: | V2, four-stroke |
| Torque: | 149.2 Nm (15.2 kgf-m or 110.0 ft.lbs) |
| Bore x stroke: | 101.6 x 101.6 mm (4.0 x 4.0 inches) |
| Fuel system: | Carburettor. S and S Super E Carburetor |
| Lubrication system: | S and S High volume oil pump |
| Gearbox: | 6-speed |
| Exhaust system: | Chrome Radius Tuned Exhaust |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | BBC Athena Softail |
| Rake (fork angle): | 44.0° |
| Trail: | 76 mm (3.0 inches) |
| Front suspension: | BBC Smooth Mount Hidden Axle |
| Rear suspension: | Progressive |
| Rear wheel travel: | 76 mm (3.0 inches) |
| Front tyre: | 90/80-21 |
| Rear tyre: | 300/80-18 |
| Front brakes: | Single disc. PM. 4-piston calipers |
| Rear brakes: | Single disc. BBC-PM 4-piston caliper BrakeDrive system |
| Physical measures and capacities |
|---|
| Dry weight: | 317.5 kg (700.0 pounds) |
| Seat height: | 508 mm (20.0 inches) If adjustable, lowest setting. |
| Overall length: | 2921 mm (115.0 inches) |
| Wheelbase: | 2235 mm (88.0 inches) |
| Fuel capacity: | 16.55 litres (4.37 gallons) |
| Oil capacity: | 4.70 litres (0.31 quarts) |
| Other specifications |
|---|
| Color options: | Gross Black, satin black, charcoal metallic, silver, black cherry, candy red, firecracker red, orange, electric blue, pearl white. |
| Starter: | Electric |
| Comments: | Various aluminium wheel and paint scheme options. |
