General information |
|
Model name
|

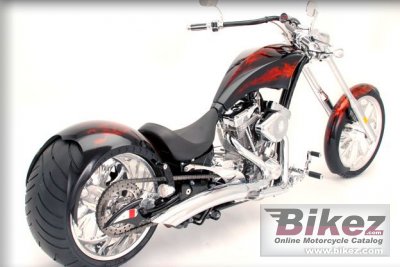

Big Bear Choppers Athena 100 EFI |
|
Year model
|
2009 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 35400. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1638.8 ccm (100.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
95.0 HP (69.3 kW)) |
|
Bore x stroke
|
101.6 x 101.6 mm (4.0 x 4.0 inches) |
|
Fuel system
|
Injection. S and S Electronic Fuel Injection (EFI) |
|
Lubrication system
|
S and S High volume oil pump |
|
Gearbox
|
6-speed |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
BBC Athena Softail |
|
Rake (fork angle)
|
40.0° |
|
Trail
|
95 mm (3.8 inches) |
|
Front suspension
|
BBC Smooth Mount Hidden Axle |
|
Rear suspension
|
Progressive |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
90/80-21 |
|
Rear tire
|
300/80-18 |
|
Front brakes
|
Single disc. PM. 4-piston calipers |
|
Rear brakes
|
Single disc. BBC-PM 4-piston caliper BrakeDrive system |
|
Physical measures and capacities |
|
Dry weight
|
317.5 kg (700.0 pounds) |
|
Power/weight ratio
|
0.2992 HP/kg |
|
Seat height
|
508 mm (20.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2921 mm (115.0 inches) |
|
Wheelbase
|
2235 mm (88.0 inches) |
|
Fuel capacity
|
16.08 litres (4.25 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
Gross Black, satin black, charcoal metallic, silver, black cherry, candy red, firecracker red, orange, electric blue. |
|
Starter
|
Electric |
|
Comments
|
Model also called BBC Athena Chopper 100 SMOOTH™ EFI Evolution. Various forged aluminium wheel and paint scheme options. |
