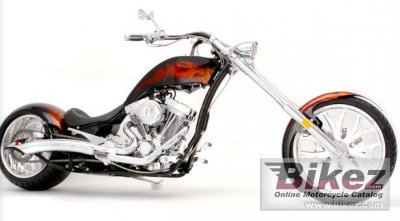

| Big Bear Choppers' profilation of this bike |
| The hot rod hole drilled outer skins on the stretched patented frame, her Devil’s Tail swingarm with matching rear fender and the artistically created fuel tank are some of the unique characteristics of the Athena ProStreet that gives her a head-turning, custom one-off impression, but with the reliability and ridability of an extensive engineered production motorcycle. |
|
General information |
|
Model name
|
Big Bear Choppers Athena 100 Carb |
|
Model year
|
2009 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 33400. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
1638.8 ccm (100.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
149.2 Nm (15.2 kgf-m or 110.0 ft.lbs) |
|
Bore x stroke
|
101.6 x 101.6 mm (4.0 x 4.0 inches) |
|
Fuel system
|
Carburettor. S and S Super E Carburetor |
|
Lubrication system
|
S and S High volume oil pump |
|
Gearbox
|
6-speed |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
BBC Athena Softail |
|
Rake (fork angle)
|
44.0° |
|
Trail
|
76 mm (3.0 inches) |
|
Front suspension
|
BBC Smooth Mount Hidden Axle |
|
Rear suspension
|
Progressive |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
90/80-21 |
|
Rear tire
|
300/80-18 |
|
Front brakes
|
Single disc. PM. 4-piston calipers |
|
Rear brakes
|
Single disc. BBC-PM 4-piston caliper BrakeDrive system |
|
Physical measures and capacities |
|
Dry weight
|
317.5 kg (700.0 pounds) |
|
Seat height
|
508 mm (20.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2921 mm (115.0 inches) |
|
Wheelbase
|
2235 mm (88.0 inches) |
|
Fuel capacity
|
16.55 litres (4.37 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
Gross Black, satin black, charcoal metallic, silver, black cherry, candy red, firecracker red, orange, electric blue. |
|
Starter
|
Electric |
|
Comments
|
Model also called BBC Athena Chopper 100 SMOOTH™ Carb Evolution. Various aluminium wheel and paint scheme options. |
