Beta's profilation of this bike |
The URBAN grew out of a clear idea: to create a city scrambler. It is simple to use and can be equipped over time with accessories to personalise it according to each rider’s taste. |
General information |
---|

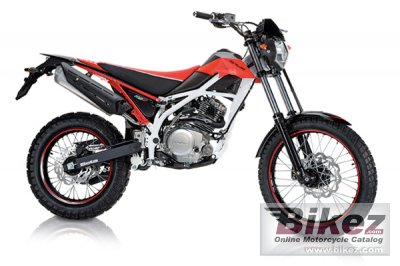

Model | Beta Urban 125 Special |
Year | 2010 |
Category | Sport |
Rating | Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
Engine and transmission |
---|
Displacement | 124.0 ccm (7.57 cubic inches) |
Engine type | Single cylinder, four-stroke |
Bore x stroke | 66.0 x 58.2 mm (2.6 x 2.3 inches) |
Fuel system | Carburettor. Mikuni UCAL 5Nh ø26-38 |
Fuel control | Single Overhead Cams (SOHC) |
Ignition | Electronic |
Lubrication system | Forced with pump |
Cooling system | Air |
Gearbox | 5-speed |
Transmission type | Chain (final drive) |
Clutch | Wet multi-disc |
Fuel consumption | 3.30 litres/100 km (30.3 km/l or 71.28 mpg) |
Greenhouse gases | 76.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
Exhaust system | Euro 3 |
Chassis, suspension, brakes and wheels |
---|
Frame type | Trellis frame |
Front suspension | Hydraulic fork with ø38 mm shaft |
Rear suspension | Monoshock with adjustable spring preload |
Front tire | 80/100-19 |
Rear tire | 120/90-16 |
Front brakes | Single disc |
Diameter | 245 mm (9.6 inches) |
Rear brakes | Single disc |
Diameter | 220 mm (8.7 inches) |
Physical measures and capacities |
---|
Dry weight | 101.0 kg (222.7 pounds) |
Overall height | 1110 mm (43.7 inches) |
Overall length | 2010 mm (79.1 inches) |
Ground clearance | 300 mm (11.8 inches) |
Wheelbase | 1345 mm (53.0 inches) |
Fuel capacity | 6.00 litres (1.59 US gallons) |
Reserve fuel capacity | 1.50 litres (0.40 US gallons) |
Other specifications |
---|
Color options | Red/white |
Starter | Electric & kick |
