| Beta's profilation of this bike |
| A cocktail on wheels that, as its name suggests, is truly at home on the streets, and offers an ideal way to discover the fun side of the city. |
|
General information |
|
Model name
|

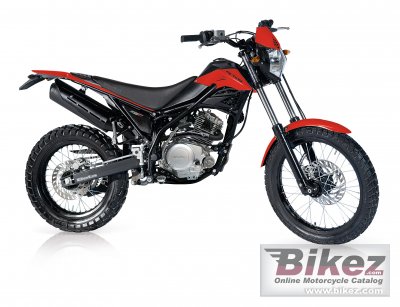

Beta Urban 125 |
|
Model year
|
2010 |
|
Category
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
66.0 x 58.2 mm (2.6 x 2.3 inches) |
|
Fuel system
|
Carburettor. Mikuni UCAL 5Nh ø26-38 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Electronic |
|
Lubrication system
|
Forced with pump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel double cradle frame |
|
Front suspension
|
Hydraulic fork with ø38 mm shaft |
|
Rear suspension
|
Monoshock with adjustable spring preload |
|
Front tire
|
80/100-19 |
|
Rear tire
|
120/90-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
101.0 kg (222.7 pounds) |
|
Overall length
|
2010 mm (79.1 inches) |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Wheelbase
|
1345 mm (53.0 inches) |
|
Fuel capacity
|
6.00 litres (1.59 US gallons) |
|
Reserve fuel capacity
|
1.50 litres (0.40 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
