| Beta's profilation of this bike |
| Technical Modifications 2007
- New Ø 45 mm Marzocchi Shiver forks with black anodising on the fork spider: an unparalleled reduction in stiction and increase in sensitivity as a result of the latest manufacturing processes on the fork tubes.
- New adjustment system on the Sachs shockabsorber: gives greater progressiveness and traction together .
- Clutch side cover splits into two parts.
- Silencer with new internal design: built to ensure optimum performance.
- New rear master-cylinder from Nissin.
- Footrests have been moved rearwards by 5 mm compared with the past: this brings an improvement in the riding position.
- The sidestand bracket is new for this year: improved design combined with added sturdiness
- A new seat design, new design for the seat tailpiece has allowed an air intake to be added
- This year’s graphic is new and aggressive: a brand new mix in black and white combined with Beta fluorescent red for an aggressive look in every detail.
|
|
General information |
|
Motorcycle name
|

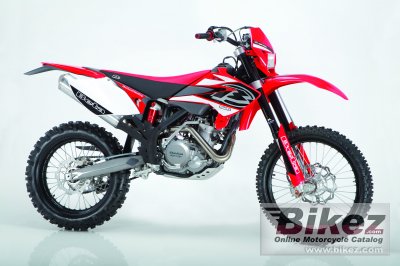

Beta RR 525 4-Stroke |
|
Year model
|
2007 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
510.0 ccm (31.12 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
95.0 x 72.0 mm (3.7 x 2.8 inches) |
|
Fuel system
|
Carburettor. Keihin FCR-MX 39 |
|
Ignition
|
DC-CDI without trembler with variable ignition ming, Kokusan type |
|
Lubrication system
|
2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
wet multi-disc clutch |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Molybdenum steel with double cradle split above the exhaust port |
|
Front suspension
|
Hydraulic USD fork with ø45 mm shaft |
|
Front wheel travel
|
45 mm (1.8 inches) |
|
Rear suspension
|
Monoshock with progressive compound lever |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc. Floating disc ø255 mm and double-piston floating caliper |
|
Diameter
|
255 mm (10.0 inches) |
|
Rear brakes
|
Single disc. Disc ø240 mm and single-piston floating caliper |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
118.0 kg (260.1 pounds) |
|
Seat height
|
940 mm (37.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1255 mm (49.4 inches) |
|
Overall length
|
2270 mm (89.4 inches) |
|
Overall width
|
813 mm (32.0 inches) |
|
Ground clearance
|
320 mm (12.6 inches) |
|
Wheelbase
|
1500 mm (59.1 inches) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Reserve fuel capacity
|
1.00 litres (0.26 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
