Beta REV 80 20082008 Beta REV 80 specifications, pictures, reviews and rating |

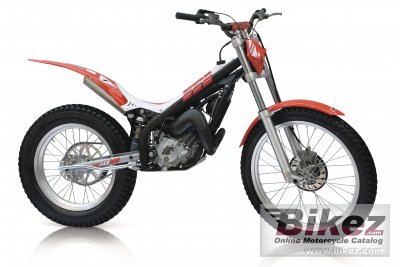

2008 Beta REV 80. Image credits - Beta.
| Beta's profilation of this bike |
| Attentive as ever to the needs of younger riders, Beta has enriched its trials range this year with a new REV-80: more adult and professional geometry and dimensions, and the usual emphasis on feel and confidence for riders who are just starting. |
| General information | |
|---|---|
| Model name | Beta REV 80 |
| Year of manufacture | 2008 |
| Type | Trial |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 79.6 ccm (4.86 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Compression | 14.7:1 |
| Bore x stroke | 48.0 x 44.0 mm (1.9 x 1.7 inches) |
| Fuel system | Carburettor. Dell´ orto PHBG 21 |
| Ignition | AET |
| Lubrication system | mix with fuel 1,5 % (synthetic oil) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double wave aluminium beam |
| Front tire | 2.75-21 |
| Rear tire | 4-18 |
| Front brakes | Single disc. 2-piston calipers |
| Diameter | 175 mm (6.9 inches) |
| Rear brakes | Single disc. 2-piston calipers |
| Diameter | 150 mm (5.9 inches) |
| Physical measures and capacities | |
| Dry weight | 64.0 kg (141.1 pounds) |
| Seat height | 652 mm (25.7 inches) If adjustable, lowest setting. |
| Overall height | 1110 mm (43.7 inches) |
| Overall length | 1925 mm (75.8 inches) |
| Overall width | 815 mm (32.1 inches) |
| Ground clearance | 295 mm (11.6 inches) |
| Wheelbase | 1230 mm (48.4 inches) |
| Fuel capacity | 2.50 litres (0.66 US gallons) |
| Reserve fuel capacity | 0.50 litres (0.13 US gallons) |
| Other specifications | |
| Modifications compared to previous model | New larger-diameter forks (ø 38 mm) with rebound adjustment and altered offset to increase rideability New shockabsorber, derived from the one fitted to the larger-capacity machines, for even more professional and high-performance use Swing-arm mounted on roller bearings for increased smoothness, reduced friction and greater reliability Rationalisation and optimisation of the front end with a gain in terms of greater rigidity Improved performance from brake system as a result of the latest changes: new rear brake caliper (like the Rev-3 250), more powerful, more controllable and better protected from knocks a new rear brake lever with improved operability new master-cylinder and front caliper: opposed pistons and floating disc for even more controllable and precise action New front disc cover of new design New hubs with larger wheel-spindles in ergal: reduced weight combined with increased rigidity and a more professional look New wheel-rims in aluminium, lighter and more rigid, and a move to tubeless tyres New aluminium handlebar with cross-piece New design of silencer, with optimised performance New ø 21 mm Dell’Orto carburettor New more precise and effective master-cylinder New design for front mudguard New colours and graphics to match the top-of-the-range Rev- |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 08 Beta REV 80 discussion group or the general Beta discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
