Beta's profilation of this bike |
The brand new Rev-80 is the last step before mounting a real Rev-3. Today the bike is even more performing than ever, thanks to interventions aimed at improving both the frame and the engine. |
General information |
---|

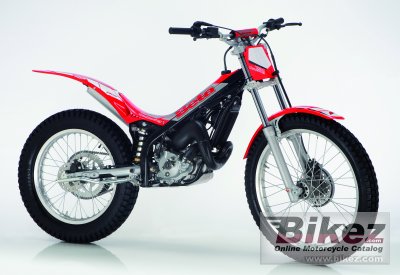

Model | Beta REV 80 |
Year | 2007 |
Category | Trial |
Rating | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
---|
Displacement | 79.6 ccm (4.86 cubic inches) |
Engine type | Single cylinder, two-stroke |
Compression | 14.7:1 |
Bore x stroke | 48.0 x 44.0 mm (1.9 x 1.7 inches) |
Fuel system | Carburettor. Dell´ orto PHBG 21 |
Ignition | AET |
Lubrication system | mix gasoline-oil 1,5 % (with synthetic oil) |
Cooling system | Liquid |
Gearbox | 6-speed |
Transmission type | Chain (final drive) |
Clutch | Wet multi-disc clutch |
Chassis, suspension, brakes and wheels |
---|
Frame type | Steel |
Front suspension | Hydraulic fork with ø33 mm shaft |
Front wheel travel | 33 mm (1.3 inches) |
Rear suspension | Monoshock with adjustable spring preload |
Front tire | 2.75-21 |
Rear tire | 4.00-18 |
Front brakes | Single disc. inox disc ø175 mm with 2 opposed pistons |
Diameter | 175 mm (6.9 inches) |
Rear brakes | Single disc. inox disc ø150 mm with 2 opposed pistons |
Diameter | 150 mm (5.9 inches) |
Physical measures and capacities |
---|
Dry weight | 64.0 kg (141.1 pounds) |
Seat height | 652 mm (25.7 inches) If adjustable, lowest setting. |
Overall height | 1110 mm (43.7 inches) |
Overall length | 1925 mm (75.8 inches) |
Overall width | 815 mm (32.1 inches) |
Ground clearance | 295 mm (11.6 inches) |
Wheelbase | 1230 mm (48.4 inches) |
Fuel capacity | 2.50 litres (0.66 US gallons) |
Reserve fuel capacity | 0.50 litres (0.13 US gallons) |
Other specifications |
---|
