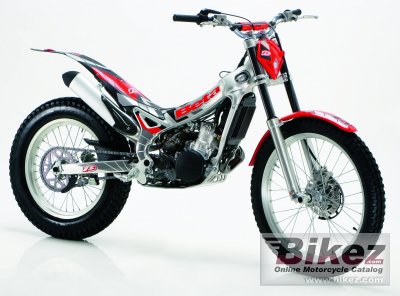

| Beta's profilation of this bike |
| The new colouring and a brand new design leap before the eyes, lending a more aggressive and racing attitude to a bike conceived to compete on the most important tracks of the world. |
| General information |
|---|
| Model | Beta Rev 3 270 |
| Year | 2006 |
| Category | Trial |
| Rating | 3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 274.5 ccm (16.75 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Compression | 10.6:1 |
| Bore x stroke | 76.0 x 60.5 mm (3.0 x 2.4 inches) |
| Fuel system | Carburettor. Mikuni VM26/208 |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Aluminium |
| Front suspension | Hydraulic fork |
| Front wheel travel | 165 mm (6.5 inches) |
| Rear suspension | Monoshock |
| Rear wheel travel | 175 mm (6.9 inches) |
| Front brakes | Single disc |
| Diameter | 185 mm (7.3 inches) |
| Rear brakes | Single disc |
| Diameter | 175 mm (6.9 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 72.0 kg (158.7 pounds) |
| Overall height | 1120 mm (44.1 inches) |
| Overall length | 1990 mm (78.3 inches) |
| Overall width | 850 mm (33.5 inches) |
| Ground clearance | 310 mm (12.2 inches) |
| Wheelbase | 1310 mm (51.6 inches) |
| Fuel capacity | 3.20 litres (0.85 US gallons) |
| Reserve fuel capacity | 1.00 litres (0.26 US gallons) |
