General information |
|

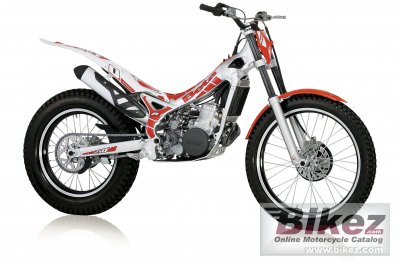

Model
|
Beta REV-3 250 |
|
Year of manufacture
|
2008 |
|
Type
|
Trial |
|
Rating
|
3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
249.6 ccm (15.23 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
11.4:1 |
|
Bore x stroke
|
72.5 x 60.5 mm (2.9 x 2.4 inches) |
|
Fuel system
|
Carburettor. Keihin PWK ø 28mm |
|
Ignition
|
Electronic AET 12V - 85W |
|
Lubrication system
|
mix with fuel 1,5 % (synthetic oil) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet multi-disc clutch with cush-drive rubber |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double wave aluminium beam |
|
Front suspension
|
Hydraulic fork with ø38 mm shaft |
|
Rear suspension
|
Monoshock |
|
Front tire
|
2.75-21 |
|
Rear tire
|
4-18 |
|
Front brakes
|
Single disc. 4 piston caliper |
|
Diameter
|
185 mm (7.3 inches) |
|
Rear brakes
|
Single disc. 2 piston caliper |
|
Diameter
|
165 mm (6.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
72.0 kg (158.7 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
1990 mm (78.3 inches) |
|
Overall width
|
850 mm (33.5 inches) |
|
Ground clearance
|
310 mm (12.2 inches) |
|
Wheelbase
|
1310 mm (51.6 inches) |
|
Fuel capacity
|
3.00 litres (0.79 US gallons) |
|
Reserve fuel capacity
|
0.80 litres (0.21 US gallons) |
|
Other specifications |
|
Modifications compared to previous model
|
REV-3 250/270Cc – 2008 Technical Modifications
New fork settings. Optimisation of the oil-flow has made the forks more sensitive in absorbing the bumps.
New shockabsorber settings. More stable performance over time, combined with greater reliability.
New Keihin PWK ø 28 mm carburettor: more immediate and lively response at the bottom end, together with a marked improvement in power and acceleration in the middle-to-upper range.
New filter box to optimise the fit with the new Keihin carburettor: improved airflow thanks to a larger diameter sleeve.
New crankcase. New design in the area of the connection between barrel and crankcase has reduced crank chamber volume with a nett increase in smoothness at low revs.
New cylinder head design (on the 250 and the 270cc) ensures more regular carburation when shutting the throttle and provides greater engine torque.
New single-chamber silencer (270cc only): smooths out the power delivery at low engine speeds making it even more linear, and provides a noticeable increase in power and acceleration at the top end.
New main bearings: these ensure greater smoothness and reliability.
New crankshaft oilseal: the reduction in friction has given the engine a cleaner response to the throttle.
Euro3 homologation.
New colour-scheme: a brand-new mix of white and fluorescent red.
|
