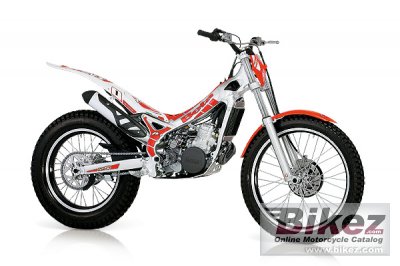

Beta REV-3 200 20082008 Beta REV-3 200 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Beta REV-3 200 |
| Year | 2008 |
| Category | Trial |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 195.0 ccm (11.90 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Compression | 11.8:1 |
| Bore x stroke | 64.0 x 64.0 mm (2.5 x 2.5 inches) |
| Fuel system | Carburettor. Keihin PWK ø 28mm |
| Ignition | Electronic AET 12V - 85W |
| Lubrication system | mix with fuel 1,5 % (synthetic oil) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Clutch | Wet multi-disc clutch with cush-drive rubber |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double wave aluminium beam |
| Front suspension | Hydraulic fork with ø38 mm shaft |
| Rear suspension | Hydraulic monoshock |
| Front tire | 2.75-21 |
| Rear tire | 4-18 |
| Front brakes | Single disc. 4 piston caliper |
| Diameter | 185 mm (7.3 inches) |
| Rear brakes | Single disc. 2 piston caliper |
| Diameter | 165 mm (6.5 inches) |
| Physical measures and capacities | |
| Dry weight | 70.0 kg (154.3 pounds) |
| Seat height | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall height | 1120 mm (44.1 inches) |
| Overall length | 1990 mm (78.3 inches) |
| Overall width | 850 mm (33.5 inches) |
| Ground clearance | 310 mm (12.2 inches) |
| Wheelbase | 1310 mm (51.6 inches) |
| Fuel capacity | 3.00 litres (0.79 US gallons) |
| Reserve fuel capacity | 0.80 litres (0.21 US gallons) |
| Other specifications | |
| Modifications compared to previous model | Technical Modifications 2008 New crankcase. New design in the area of the connection between barrel and crankcase has reduced crank chamber volume with a nett increase in smoothness at low revs. New main bearings: these ensure greater smoothness and reliability. New crankshaft oilseal: the reduction in friction has given the engine a cleaner response to the throttle. New colour-scheme: a brand-new mix of white and fluorescent red. |
