General information |
|
Motorcycle name
|

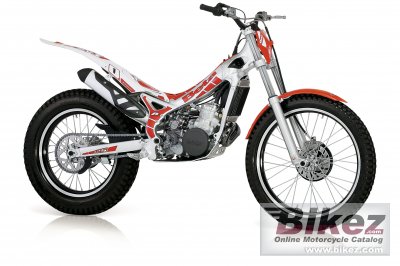

Beta REV-3 125 |
|
Year model
|
2008 |
|
Type
|
Trial |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
14.0:1 |
|
Bore x stroke
|
54.0 x 54.0 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. Keihin PWK ø 28mm |
|
Ignition
|
Electronic AET 12V - 85W |
|
Lubrication system
|
mix with fuel 1,5 % (synthetic oil) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet multi-disc clutch with cush-drive rubber |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double wave aluminium beam |
|
Front suspension
|
Hydraulic fork with ø38 mm shaft |
|
Rear suspension
|
Hydraulic monoshock |
|
Front tire
|
2.75-21 |
|
Rear tire
|
4-18 |
|
Front brakes
|
Single disc. 4 piston caliper |
|
Diameter
|
185 mm (7.3 inches) |
|
Rear brakes
|
Single disc. 2 piston caliper |
|
Diameter
|
165 mm (6.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
70.0 kg (154.3 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
1990 mm (78.3 inches) |
|
Overall width
|
850 mm (33.5 inches) |
|
Ground clearance
|
310 mm (12.2 inches) |
|
Wheelbase
|
1310 mm (51.6 inches) |
|
Fuel capacity
|
3.00 litres (0.79 US gallons) |
|
Reserve fuel capacity
|
0.80 litres (0.21 US gallons) |
|
Other specifications |
|
Modifications compared to previous model
|
Technical Modifications 2008
New fork settings: developed with the younger rider in mind, the result is a more reactive and lively response so as to make moves at a standstill easier.
New shockabsorber settings. More stable performance over time, combined with greater reliability.
New Keihin PWK ø 28 mm carburettor.
New crankcase.
New design for cylinder porting.
Shorter clutch hose: less weight combined with a more precise and direct action.
New main bearings: these ensure greater smoothness and reliability.
Euro3 homologation.
New colour-scheme: a brand-new mix of white and fluorescent red.
|
