| Beta's profilation of this bike |

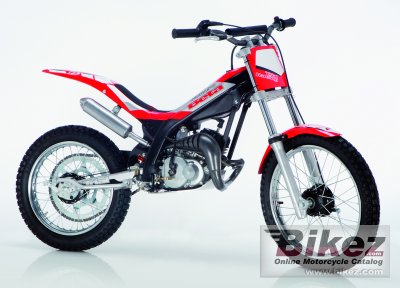

| Little riders craving to climb over the first obstacle with dad and his Rev3, can get on the new Minitrial, a light vehicle moved by a brisk single-cylinder engine, 2 strokes and air-cooled. |
|
General moped information |
|
Motorcycle name
|
Beta Minitrial |
|
Year
|
2007 |
|
Category
|
Minibike, cross |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.0 ccm (2.99 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Compression
|
13.9:1 |
|
Bore x stroke
|
39.5 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. Dell´Orto SHA 14 - 12L |
|
Ignition
|
Electronic Selettra |
|
Lubrication system
|
mix with fuel 1,5% (with synthetic oil) |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Automatic centrifugal wet clutch |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tubing |
|
Front suspension
|
Mechanical fork with ø30 mm shaft |
|
Front wheel travel
|
30 mm (1.2 inches) |
|
Front tire
|
2.5-16 |
|
Rear tire
|
2.5-14 |
|
Front brakes
|
Expanding brake (drum brake). Mechanical drive drum ø66 mm |
|
Diameter
|
66 mm (2.6 inches) |
|
Rear brakes
|
Expanding brake (drum brake). Mechanical drive drum ø90 mm |
|
Diameter
|
90 mm (3.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
42.5 kg (93.7 pounds) |
|
Seat height
|
570 mm (22.4 inches) If adjustable, lowest setting. |
|
Overall height
|
940 mm (37.0 inches) |
|
Overall length
|
1530 mm (60.2 inches) |
|
Overall width
|
650 mm (25.6 inches) |
|
Ground clearance
|
255 mm (10.0 inches) |
|
Wheelbase
|
1020 mm (40.2 inches) |
|
Fuel capacity
|
2.00 litres (0.53 US gallons) |
|
Reserve fuel capacity
|
0.30 litres (0.08 US gallons) |
|
Other specifications |
