| Beta's profilation of this bike |
| Everyday, all around the world, there are many kids trying to make their first experiences on a dirt-track, learning how to face a curve or enjoying their first exciting high jumps, dreaming of being an Off-road Star.
But Beta Minicross is not only competition: beyond the will to win the most important thing is doing a sport to grow up with fun. Minicross is also a vehicle to improve safely the children’s concentration, balance and even consciousness and control of their own body.
To start the young riders aged 4/7, Beta designed a vehicle with 10” wheels, moved by a little 50cc engine, single-speed, enough brisk and prompt for the first trips in the dirt-tracks. The drum brakes guarantee quick and good stopping, while the readiness of the fork and rear shock nullify the ground asperities: R10 is safety and fun!
|
|
General moped information |
|
Model name
|

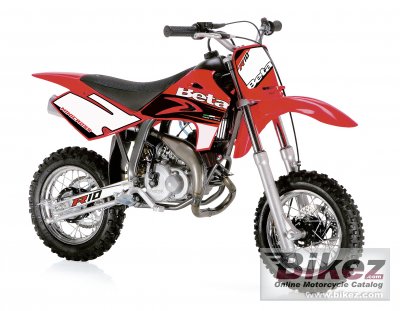

Beta Minicross R 10 |
|
Year of manufacture
|
2008 |
|
Type
|
Minibike, cross |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
39.5 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. Dell´Orto SHA 14 - 12L |
|
Lubrication system
|
With fuel 1,5% (with synthetic oil) |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Clutch
|
Wet automatic centrifugal type |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tubing |
|
Front suspension
|
Mechanical fork with ø30 mm shaft |
|
Front tire
|
2.5-15 |
|
Rear tire
|
3-12 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Diameter
|
66 mm (2.6 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
90 mm (3.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
37.5 kg (82.7 pounds) |
|
Seat height
|
620 mm (24.4 inches) If adjustable, lowest setting. |
|
Overall height
|
840 mm (33.1 inches) |
|
Overall length
|
1290 mm (50.8 inches) |
|
Overall width
|
590 mm (23.2 inches) |
|
Ground clearance
|
240 mm (9.4 inches) |
|
Wheelbase
|
905 mm (35.6 inches) |
|
Fuel capacity
|
2.00 litres (0.53 US gallons) |
|
Reserve fuel capacity
|
0.30 litres (0.08 US gallons) |
|
Other specifications |
