| Beta's profilation of this bike |
| Try to mix together: the lightness and the size of a scrambler, an absolutely original design, maximum fun and driving pleasure. Here’s the brand new formula coming out the Beta factory.
|
|
General information |
|
Model
|

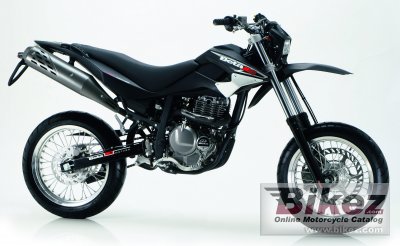

Beta M4 4T Supermotard |
|
Year of manufacture
|
2006 |
|
Type
|
Super motard |
|
Rating
|
2.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
349.0 ccm (21.30 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
79.0 x 71.2 mm (3.1 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Mikuni BST 33 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Electronic |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front suspension
|
Hydraulic fork |
|
Front wheel travel
|
220 mm (8.7 inches) |
|
Rear suspension
|
Monoshock with adjustable spring preload |
|
Rear wheel travel
|
220 mm (8.7 inches) |
|
Front brakes
|
Single disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
133.0 kg (293.2 pounds) |
|
Seat height
|
920 mm (36.2 inches) If adjustable, lowest setting. |
|
Overall length
|
2160 mm (85.0 inches) |
|
Overall width
|
860 mm (33.9 inches) |
|
Ground clearance
|
305 mm (12.0 inches) |
|
Wheelbase
|
1410 mm (55.5 inches) |
|
Fuel capacity
|
11.50 litres (3.04 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
