| General information |
|---|

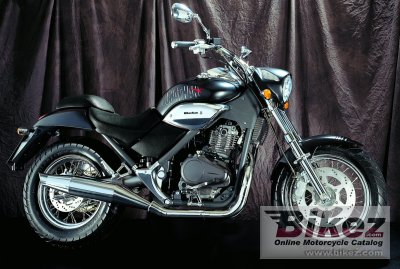

| Model | Beta Jonathan 350 Cruiser |
| Year | 2004 |
| Category | Custom / cruiser |
| Rating | 3.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 349.0 ccm (21.30 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.5:1 |
| Bore x stroke | 79.0 x 71.2 mm (3.1 x 2.8 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Double craded frame |
| Front suspension | Hydraulic fork |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Hydraulic mono shock absorbers with adjustable spring's setting |
| Rear wheel travel | 100 mm (3.9 inches) |
| Front tire | 120/80-16 |
| Rear tire | 140/90-15 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 138.0 kg (304.2 pounds) |
| Seat height | 870 mm (34.3 inches) If adjustable, lowest setting. |
| Overall height | 1090 mm (42.9 inches) |
| Overall length | 2150 mm (84.6 inches) |
| Ground clearance | 240 mm (9.4 inches) |
| Wheelbase | 1470 mm (57.9 inches) |
| Fuel capacity | 19.00 litres (5.02 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications |
|---|
| Color options | Black (nero opaco) |
