| Beta's profilation of this bike |
| New shockabsorber, derived from the one fitted to the larger-capacity machines, for even more professional and high-performance use |
| General information |
|---|

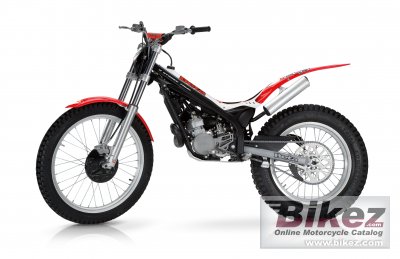

| Model | Beta Evo 80 |
| Year | 2010 |
| Category | Trial |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 79.6 ccm (4.86 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Compression | 14.7:1 |
| Bore x stroke | 48.0 x 44.0 mm (1.9 x 1.7 inches) |
| Fuel system | Carburettor. Dell´ orto PHBG 21 |
| Lubrication system | Mix with fuel 1,5 % (synthetic oil) |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Steel |
| Front suspension | Hydraulic fork |
| Front wheel travel | 165 mm (6.5 inches) |
| Rear suspension | Monoshock with adjustable spring preload and adjustable hydraulic brake in extension |
| Rear wheel travel | 150 mm (5.9 inches) |
| Front tire | 2.75-21 |
| Rear tire | 4.00-18 |
| Front brakes | Single disc. 2-piston calipers |
| Diameter | 175 mm (6.9 inches) |
| Rear brakes | Single disc. 2-piston calipers |
| Diameter | 150 mm (5.9 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 66.0 kg (145.5 pounds) |
| Seat height | 652 mm (25.7 inches) If adjustable, lowest setting. |
| Overall height | 1110 mm (43.7 inches) |
| Overall length | 1925 mm (75.8 inches) |
| Overall width | 815 mm (32.1 inches) |
| Ground clearance | 295 mm (11.6 inches) |
| Wheelbase | 1230 mm (48.4 inches) |
| Fuel capacity | 2.50 litres (0.66 US gallons) |
| Reserve fuel capacity | 0.50 litres (0.13 US gallons) |
| Other specifications |
|---|
| Color options | Red/black/white |
