| Beta's profilation of this bike |
| New radiator and new position of the radiator header tank for better ergonomics and efficiency.
|
| General information |
|---|

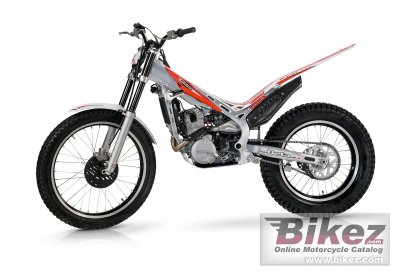

| Model | Beta Evo 250 4T |
| Year | 2010 |
| Category | Trial |
| Rating | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement | 249.6 ccm (15.23 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 11.5:1 |
| Bore x stroke | 77.0 x 53.6 mm (3.0 x 2.1 inches) |
| Fuel system | Carburettor. Mikuni |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Single wave aluminium beam |
| Front suspension | Hydraulic fork with ΓΈ38 mm shaft |
| Front wheel travel | 180 mm (7.1 inches) |
| Rear suspension | Monoshock |
| Rear wheel travel | 165 mm (6.5 inches) |
| Front tire | 2.75-21 |
| Rear tire | 4.00-18 |
| Front brakes | Single disc. 4 piston caliper |
| Diameter | 185 mm (7.3 inches) |
| Diameter | 150 mm (5.9 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 72.0 kg (158.7 pounds) |
| Seat height | 680 mm (26.8 inches) If adjustable, lowest setting. |
| Overall height | 1115 mm (43.9 inches) |
| Overall length | 1990 mm (78.3 inches) |
| Overall width | 850 mm (33.5 inches) |
| Ground clearance | 310 mm (12.2 inches) |
| Wheelbase | 1305 mm (51.4 inches) |
| Fuel capacity | 2.60 litres (0.69 US gallons) |
| Reserve fuel capacity | 0.50 litres (0.13 US gallons) |
| Other specifications |
|---|
| Color options | Red/black |
