| Beta's profilation of this bike |
| New rear suspension settings developed with the racing team which improves the overall working of the shock and makes the bike easier to move at the rear. |
|
General information |
|
Model name
|

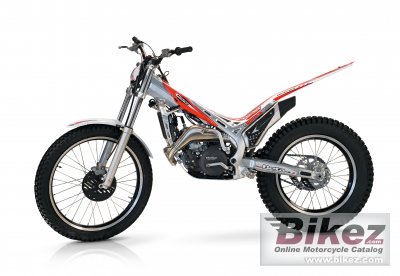

Beta Evo 250 2T |
|
Model year
|
2010 |
|
Category
|
Trial |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
249.7 ccm (15.24 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
72.5 x 60.5 mm (2.9 x 2.4 inches) |
|
Fuel system
|
Carburettor. Keihin PWK ø 28mm |
|
Lubrication system
|
Mix with fuel 1,5 % (synthetic oil) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch with cush-drive rubber |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Single wave aluminium beam |
|
Front suspension
|
Hydraulic fork with ø38 mm shaft |
|
Rear suspension
|
Monoshock |
|
Front tire
|
2.75-21 |
|
Rear tire
|
4.00-R18 |
|
Front brakes
|
Single disc. 4 piston caliper |
|
Diameter
|
180 mm (7.1 inches) |
|
Rear brakes
|
Single disc. 2 piston caliper |
|
Diameter
|
165 mm (6.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
69.0 kg (152.1 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
1990 mm (78.3 inches) |
|
Overall width
|
850 mm (33.5 inches) |
|
Ground clearance
|
310 mm (12.2 inches) |
|
Wheelbase
|
1310 mm (51.6 inches) |
|
Fuel capacity
|
2.60 litres (0.69 US gallons) |
|
Reserve fuel capacity
|
0.50 litres (0.13 US gallons) |
|
Other specifications |
|
Color options
|
Red/white/black |
