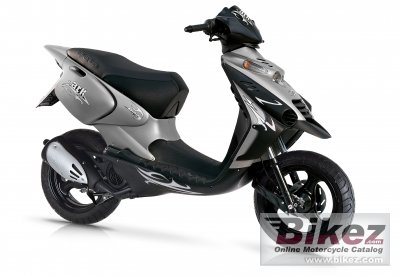

Beta Ark LC Tribe 20102010 Beta Ark LC Tribe specifications, pictures, reviews and rating |
| Beta's profilation of this bike |
| Funny and cheerful, Ark is the Beta proposal for every person who is looking for a practical, reliable and gritty vehicle. |
| General moped information | |
|---|---|
| Model | Beta Ark LC Tribe |
| Model year | 2010 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor. Dell´Orto PHVA 12 |
| Fuel control | Overhead Cams (OHC) |
| Lubrication system | With mechanical pump - mix gasoline-oil 1,5% (with synthetic oil) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Dry automatic centrifugal type |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel |
| Front suspension | Hydraulic fork with ø32 mm shaft |
| Front wheel travel | 95 mm (3.7 inches) |
| Rear suspension | Monoshock with adjustable spring preload |
| Rear wheel travel | 89 mm (3.5 inches) |
| Front tire | 130/60-13 |
| Rear tire | 130/60-13 |
| Front brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Physical measures and capacities | |
| Dry weight | 88.0 kg (194.0 pounds) |
| Overall length | 1740 mm (68.5 inches) |
| Overall width | 830 mm (32.7 inches) |
| Ground clearance | 215 mm (8.5 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Other specifications | |
| Color options | Silver |
| Starter | Electric |
| Comments | An air cooled version called Ark Ac Tribe is available. |
