| General moped information |
|---|

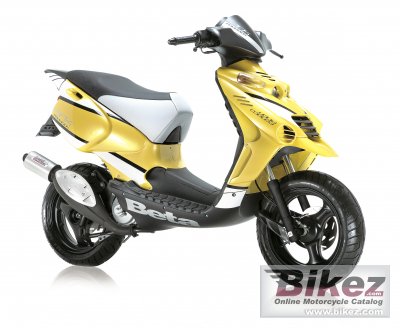

| Model | Beta ARK LC Paddock |
| Year | 2008 |
| Category | Scooter |
| Rating | 2.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor. Dell´Orto PHVA 12 |
| Lubrication system | With mechanical pump - mix gasoline-oil 1,5% (with synthetic oil) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Dry automatic centrifugal type |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | tubular steel |
| Front suspension | Hydraulic fork with ø32 mm shaft |
| Rear suspension | Monoshock with adjustable spring preload |
| Front tire | 130/60-13 |
| Rear tire | 130/60-13 |
| Front brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 88.0 kg (194.0 pounds) |
| Overall height | 1150 mm (45.3 inches) |
| Overall length | 1740 mm (68.5 inches) |
| Overall width | 830 mm (32.7 inches) |
| Ground clearance | 215 mm (8.5 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Reserve fuel capacity | 1.30 litres (0.34 US gallons) |
| Other specifications |
|---|
| Update specs | Report missing specs or required updates. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder | Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 08 Beta ARK LC Paddock discussion group or the general Beta discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Beta moped
|
Engine performance for the 2008 Beta ARK LC Paddock:
 (63.2 out of 100)
