| General moped information |
|---|

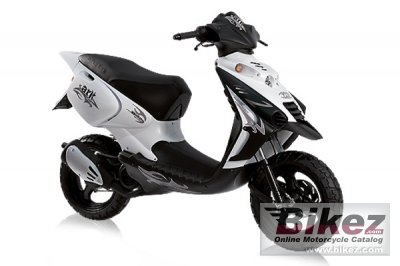

| Model | Beta ARK AC Tribe |
| Year | 2008 |
| Category | Scooter |
| Rating | 3.1 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor. Dell´Orto PHVA 12 |
| Lubrication system | With mechanical pump - mix gasoline-oil 1,5% (with synthetic oil) |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Dry automatic centrifugal type |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | tubular steel |
| Front suspension | Hydraulic fork with ø32 mm shaft |
| Front wheel travel | 95 mm (3.7 inches) |
| Rear suspension | Monoshock with adjustable spring preload |
| Rear wheel travel | 89 mm (3.5 inches) |
| Front tire | 130/60-13 |
| Rear tire | 130/60-13 |
| Front brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 88.0 kg (194.0 pounds) |
| Overall height | 1150 mm (45.3 inches) |
| Overall length | 1740 mm (68.5 inches) |
| Overall width | 830 mm (32.7 inches) |
| Ground clearance | 215 mm (8.5 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Reserve fuel capacity | 1.30 litres (0.34 US gallons) |
