| Beta's profilation of this bike |
| The Ark look doesn’t hide its sporting and scathing spirit: high mudguards, off-road sides, brawny muffler, are only some details that add energy and race look to a daily use vehicle. |
|
General moped information |
|
Model name
|

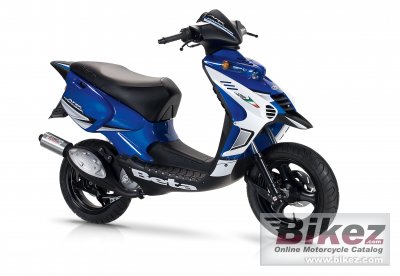

Beta Ark AC Paddock |
|
Year model
|
2010 |
|
Type
|
Scooter |
|
Rating
|
3.1 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHVA 12 |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Dry automatic centrifugal type |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front suspension
|
Hydraulic fork with ø32 mm shaft |
|
Rear suspension
|
Monoshock with adjustable spring preload |
|
Front tire
|
130/60-13 |
|
Rear tire
|
130/60-13 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
88.0 kg (194.0 pounds) |
|
Overall height
|
1150 mm (45.3 inches) |
|
Overall length
|
1740 mm (68.5 inches) |
|
Overall width
|
830 mm (32.7 inches) |
|
Ground clearance
|
215 mm (8.5 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Reserve fuel capacity
|
1.30 litres (0.34 US gallons) |
|
Other specifications |
|
Color options
|
Blue/white |
|
Starter
|
Electric |
|
Comments
|
A liquid cooled version called Ark LC Paddock is available. |
