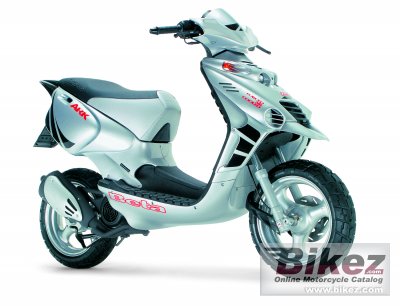

Beta Ark 50 AC 20072007 Beta Ark 50 AC specifications, pictures, reviews and rating |
| Beta's profilation of this bike |
| Being airy and entertaining, Ark is the proposal by Beta for all the riders in search of a practical, reliable and dynamic scooter. Available in various settings and colour mix, with racing or classic design, liquid or air cooled, Ark is the right scooter for anyone who want to live the road in fun and in freedom, adding a witty touch of colour to daily routine. |
| General moped information | |
|---|---|
| Model | Beta Ark 50 AC |
| Model year | 2007 |
| Category | Scooter |
| Rating | 3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor. Dell´Orto PHVA 12 HS |
| Ignition | Electronic Ducati 12V - 60W |
| Lubrication system | With mechanical pump - gasoline-oil 1,5% (with synthetic oil) |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Dry automatic centrifugal type |
| Chassis, suspension, brakes and wheels | |
| Frame type | tubular steel |
| Front suspension | Hydraulic fork with ø32 mm shaft |
| Front wheel travel | 32 mm (1.3 inches) |
| Rear suspension | Monoshock with adjustable spring preload |
| Front tire | 130/60-13 |
| Rear tire | 130/60-13 |
| Front brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Dry weight | 84.0 kg (185.2 pounds) |
| Seat height | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Overall height | 1150 mm (45.3 inches) |
| Overall length | 1740 mm (68.5 inches) |
| Overall width | 750 mm (29.5 inches) |
| Ground clearance | 215 mm (8.5 inches) |
| Wheelbase | 1240 mm (48.8 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Reserve fuel capacity | 1.30 litres (0.34 US gallons) |
| Other specifications | |
| Color options | Blck, Silver, Blue |
