| Beta's profilation of this bike |
| Being airy and entertaining, Ark is the proposal by Beta for all the riders in search of a practical, reliable and dynamic scooter. Available in various settings and colour mix, with racing or classic design, liquid or air cooled, Ark is the right scooter for anyone who want to live the road in fun and in freedom, adding a witty touch of colour to daily routine.
Its particular look does not hide Ark’s sporting and biting attitude: high mudguards, off-road flavoured flanks and brawny muffler are just some of the details giving a typically racing look to a vehicle designated for a daily use.
Supplied with a solid frame and easy to handle even during the strongest breakings, Ark grants the irregularities filtration to an hydraulic front fork and to an adjustable rear shock absorber which guarantee full grip and stability.
Animated by a 2 strokes engines, powerful and steady, Ark is absolutely versatile: born with an Off-road DNA, typically Beta, it doesn’t scorn the asphalt and it can mount both slick or off-road tyres.
A range of accessories is available to enrich the current equipment and to make the ride more delightful and handy: a practical windshield protecting the driver from bad weather conditions, a side stand and a classic carrier, inevitable to run the daily errands.
|
|
General moped information |
|
Model name
|

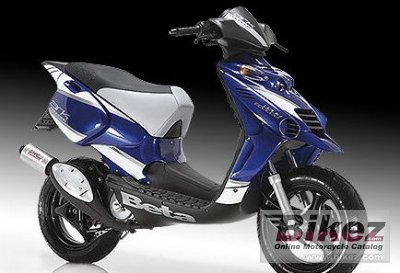

Beta Ark 50 - Paddock |
|
Year of manufacture
|
2007 |
|
Type
|
Scooter |
|
Rating
|
3.2 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHVA 12 |
|
Ignition
|
Electronic Ducati 12V - 60W |
|
Lubrication system
|
With mechanical pump - mix gasoline-oil 1,5% (with synthetic oil) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Dry automatic centrifugal type |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel |
|
Front suspension
|
Hydraulic fork with ø32 mm shaft |
|
Front wheel travel
|
32 mm (1.3 inches) |
|
Rear suspension
|
Monoshock with adjustable spring preload |
|
Front tire
|
130/60-13 |
|
Rear tire
|
130/60-13 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
88.0 kg (194.0 pounds) |
|
Overall height
|
830 mm (32.7 inches) |
|
Overall length
|
1905 mm (75.0 inches) |
|
Ground clearance
|
215 mm (8.5 inches) |
|
Wheelbase
|
1740 mm (68.5 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Reserve fuel capacity
|
1.30 litres (0.34 US gallons) |
|
Other specifications |
|
Color options
|
Blue, Yellow |
