| Beta's profilation of this bike |
| Its engine is a real 350cc 4-stroke classic: simple and created to last, absolutely reliable and perfectly faithful to the 4.o’s nature: excellent performances with no excessiveness. |
| General information |
|---|

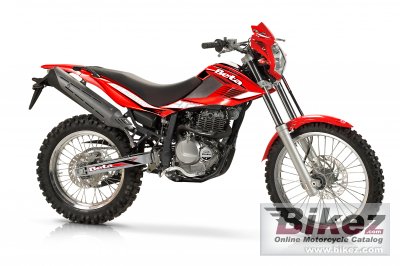

| Model | Beta Alp 4.0 |
| Year | 2012 |
| Category | Enduro / offroad |
| Rating | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 349.0 ccm (21.30 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.5:1 |
| Bore x stroke | 79.0 x 71.2 mm (3.1 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Mikuni BST 33 |
| Fuel control | Single Overhead Cams (SOHC) |
| Lubrication system | Forced by pump |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-plate |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Steel double cradle frame |
| Front suspension | Hydraulic fork with ø46 mm shaft |
| Front wheel travel | 220 mm (8.7 inches) |
| Rear suspension | Monoshock with adjustable spring preload |
| Rear wheel travel | 220 mm (8.7 inches) |
| Front tire | 90/90-21 |
| Rear tire | 130/90-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 133.0 kg (293.2 pounds) |
| Seat height | 863 mm (34.0 inches) If adjustable, lowest setting. |
| Overall height | 1240 mm (48.8 inches) |
| Overall length | 2208 mm (86.9 inches) |
| Overall width | 850 mm (33.5 inches) |
| Ground clearance | 275 mm (10.8 inches) |
| Wheelbase | 1444 mm (56.9 inches) |
| Fuel capacity | 10.50 litres (2.77 US gallons) |
| Reserve fuel capacity | 3.00 litres (0.79 US gallons) |
| Other specifications |
|---|
| Color options | White Pearl, Orange-Gray |
| Starter | Electric |
