| Beta's profilation of this bike |
| This 100% versatile bike is approved for mounting, both enduro tyres (on production models) for amazing trips on the paths through mountains and woods, or road tyres to bite the traffic of the town. |
|
General information |
|
Model name
|

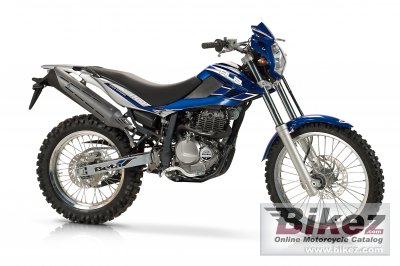

Beta Alp 4.0 |
|
Model year
|
2010 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
349.0 ccm (21.30 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
79.0 x 71.2 mm (3.1 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Mikuni BST 33 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel double cradle frame |
|
Front suspension
|
Hydraulic fork with ΓΈ46 mm shaft |
|
Front wheel travel
|
220 mm (8.7 inches) |
|
Rear suspension
|
Monoshock with adjustable spring preload |
|
Rear wheel travel
|
220 mm (8.7 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
90/90-21 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
133.0 kg (293.2 pounds) |
|
Seat height
|
863 mm (34.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1240 mm (48.8 inches) |
|
Overall length
|
2208 mm (86.9 inches) |
|
Overall width
|
850 mm (33.5 inches) |
|
Ground clearance
|
275 mm (10.8 inches) |
|
Wheelbase
|
1444 mm (56.9 inches) |
|
Fuel capacity
|
10.50 litres (2.77 US gallons) |
|
Reserve fuel capacity
|
3.00 litres (0.79 US gallons) |
|
Other specifications |
|
Color options
|
Blue/black |
|
Starter
|
Electric |
