General information |
|
Motorcycle name
|

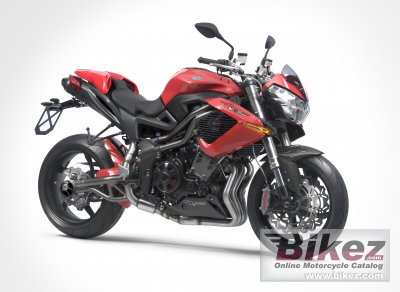

Benelli TNT R160 |
|
Year of manufacture
|
2011 |
|
Type
|
Naked bike |
|
Rating
|
4.2 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
1131.0 ccm (69.01 cubic inches) |
|
Type of engine
|
In-line three, four-stroke |
|
Engine details
|
Tilted forward with anti-vibration countershaft |
|
Output
|
155.0 HP (113.1 kW)) @ 10300 RPM |
|
Torque
|
120.0 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 8000 RPM |
|
Compression
|
11.2:1 |
|
Bore x stroke
|
88.0 x 62.0 mm (3.5 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic injection with three throttle bodies ø53 mm |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wt, multidisk |
|
Driveline
|
Straight toothed primary, cahian finally |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Decomposable, front steel trestle, rear alluminium alloy casting |
|
Rake (fork angle)
|
24.0° |
|
Trail
|
95 mm (3.7 inches) |
|
Front suspension
|
Ø50 mm upside-down fork, with idraulic extension / compression and spring preload adjustments |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Steel trestle swingarm, progressive rear dumper with idraulic extension/compression and spring preload adjustments |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/50-ZR17 |
|
Front brakes
|
Double disc. Twin floating disks, 4-piston caliper |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc. Twin piston caliper |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
208.0 kg (458.6 pounds) |
|
Power/weight ratio
|
0.7452 HP/kg |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1050 mm (41.3 inches) |
|
Overall length
|
2128 mm (83.8 inches) |
|
Overall width
|
790 mm (31.1 inches) |
|
Wheelbase
|
1443 mm (56.8 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Red/black |
|
Starter
|
Electric |
