General information |
|
Model
|

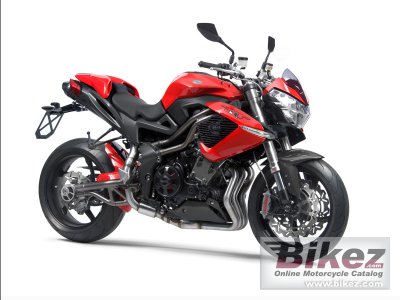

Benelli TNT 1130 R |
|
Year of manufacture
|
2012 |
|
Type
|
Naked bike |
|
Rating
|
4.2 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
1131.0 ccm (69.01 cubic inches) |
|
Type of engine
|
In-line three, four-stroke |
|
Engine details
|
Double overhead camshaft with balancer shaft |
|
Output
|
157.8 HP (115.2 kW)) @ 10200 RPM |
|
Torque
|
120.0 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 8400 RPM |
|
Bore x stroke
|
88.0 x 62.0 mm (3.5 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic injection with three throttle bodies ΓΈ53 mm |
|
Ignition
|
Walbro ECUA-1 |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry clutch with hydraulic command with slipper device |
|
Driveline
|
44/79 primary drive |
|
Emission details
|
Euro 3 |
|
Exhaust system
|
With catalytic converter and oxigen sensor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Decomposable, front steel trestle, rear aluminium alloy casting |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
95 mm (3.7 inches) |
|
Front suspension
|
50 mm upside-down fork, with hydraulic rebound / compression and spring preload adjustments |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Steel tube trestle swingarm, rear dumper with hydraulic adjustment (rebound, high and low speed compression) and spring preload assembled with progressive link |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Double disc. Floating Wave disk mm with radial monoblock 4 pistons calipers |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Wave disk with double piston caliper |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Aluminium alloy |
|
Physical measures and capacities |
|
Dry weight
|
208.0 kg (458.6 pounds) |
|
Weight incl. oil, gas, etc
|
218.0 kg (480.6 pounds) |
|
Power/weight ratio
|
0.7587 HP/kg |
|
Seat height
|
830 mm (32.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1050 mm (41.3 inches) |
|
Overall length
|
2100 mm (82.7 inches) |
|
Overall width
|
790 mm (31.1 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1443 mm (56.8 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Oil capacity
|
4.00 litres (4.23 US quarts) |
|
Other specifications |
|
Color options
|
White/red |
|
Starter
|
Electric |
