| Benelli's profilation of this bike |
| The BX 505 offers aggresive styling with exceptional performance and agility, all part of Benelli´s entry into the off-road market |
| General information |
|---|

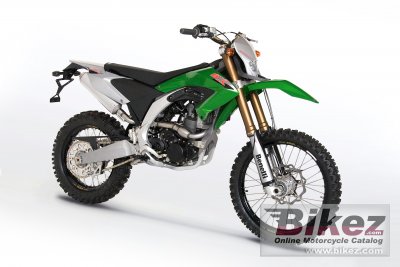

| Model: | Benelli BX 505 Enduro |
| Year: | 2011 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 505.0 ccm (30.82 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Engine details: | Titanium valves |
| Power: | 59.7 HP (43.6 kW)) @ 8500 RPM |
| Torque: | 50.0 Nm (5.1 kgf-m or 36.9 ft.lbs) @ 5750 RPM |
| Compression: | 11.5:1 |
| Bore x stroke: | 104.0 x 59.5 mm (4.1 x 2.3 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Electronic injection - throttle body 42 mm |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Digital |
| Lubrication system: | Wet sump and reeds |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet clutch 7 steel discs |
| Emission details: | Euro 3 |
| Exhaust system: | With catalytic converter and oxygen sensor |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Aluminium with carbon elements |
| Rake (fork angle): | 26.5° |
| Trail: | 110 mm (4.3 inches) |
| Front suspension: | 50 mm fully adjustable |
| Rear suspension: | Sachs shock absorber fully adjustable |
| Front tyre: | 80/100-21 |
| Rear tyre: | 140/80-18 |
| Front brakes: | Single disc |
| Diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 110.0 kg (242.5 pounds) |
| Power/weight ratio: | 0.5425 HP/kg |
| Seat height: | 960 mm (37.8 inches) If adjustable, lowest setting. |
| Overall height: | 1240 mm (48.8 inches) |
| Overall length: | 2160 mm (85.0 inches) |
| Overall width: | 810 mm (31.9 inches) |
| Wheelbase: | 1450 mm (57.1 inches) |
| Fuel capacity: | 9.00 litres (2.38 gallons) |
| Other specifications |
|---|
| Color options: | Green |
| Starter: | Electric & kick |
