Benelli BX 505 Enduro 20102010 Benelli BX 505 Enduro specifications, pictures, reviews and rating |

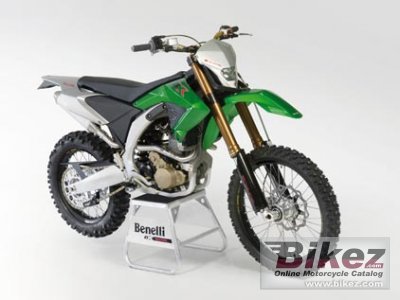

 2010 Benelli BX 505 Enduro. Picture credits - Benelli. Submit more pictures.
|
| General information | |
|---|---|
| Motorcycle name | Benelli BX 505 Enduro |
| Model year | 2010 |
| Category | Enduro / offroad |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 505.0 ccm (30.82 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 59.7 HP (43.6 kW)) @ 8500 RPM |
| Torque | 50.0 Nm (5.1 kgf-m or 36.9 ft.lbs) @ 5750 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 104.0 x 59.5 mm (4.1 x 2.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Electronic injection - throttle body 42 mm EURO 3 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital |
| Lubrication system | Wet sump and reeds |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet clutch 7 steel discs |
| Exhaust system | With catalytic converter and oxygen sensor |
| Chassis, suspension, brakes and wheels | |
| Frame type | Single tube cradle with forged, casted and extruded elements and carbon structural part s. |
| Rake (fork angle) | 26.5° |
| Trail | 110 mm (4.3 inches) |
| Front suspension | 50 mm fully adjustable |
| Rear suspension | Sachs shock absorber fully adjustable |
| Front tire | 80/100-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 110.0 kg (242.5 pounds) |
| Power/weight ratio | 0.5425 HP/kg |
| Seat height | 960 mm (37.8 inches) If adjustable, lowest setting. |
| Overall length | 2160 mm (85.0 inches) |
| Overall width | 810 mm (31.9 inches) |
| Wheelbase | 1450 mm (57.1 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Other specifications | |
| Color options | Green |
| Starter | Electric & kick |
