General moped information |
---|

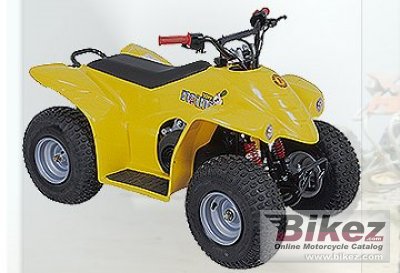

Model | Barossa AL5 |
Year | 2009 |
Category | ATV |
Rating | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
---|
Displacement | 49.0 ccm (2.99 cubic inches) |
Engine type | Single cylinder, two-stroke |
Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
Cooling system | Air |
Gearbox | Automatic |
Transmission type | Chain (final drive) |
Exhaust system | Euro II |
Chassis, suspension, brakes and wheels |
---|
Frame type | Steel |
Front suspension | Single wishbone |
Rear suspension | Single swing |
Front tire | 16/8-7 |
Rear tire | 16/8-7 |
Front brakes | Expanding brake (drum brake) |
Rear brakes | Expanding brake (drum brake) |
Physical measures and capacities |
---|
Dry weight | 99.0 kg (218.3 pounds) |
Overall height | 1100 mm (43.3 inches) |
Overall length | 1400 mm (55.1 inches) |
Overall width | 860 mm (33.9 inches) |
Other specifications |
---|
Starter | Electric |
Comments | Barosso ATVs are made in Taiwan |
