| BamX's profilation of this bike |
| This nonstandard vehicle belongs to the best ATVs. The charger is equipped by 4 stroke semi automatic engine. The charger and #65533;s rear disc brake contributes to the simplicity of the vehicle and #65533;s driving. |
|
General information |
|
Motorcycle name
|

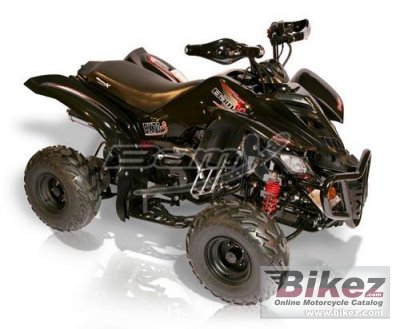

BamX BX70-S Charger |
|
Year of manufacture
|
2010 |
|
Type
|
ATV |
| Price as new | US$ 1299. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
72.0 ccm (4.39 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
3.2 HP (2.3 kW)) |
|
Torque
|
4.2 Nm (0.4 kgf-m or 3.1 ft.lbs) @ 5500 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
47.0 x 41.4 mm (1.9 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Lubrication system
|
Pressure/Splash |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Rear suspension
|
Swing Arm |
|
Front tire
|
16/7-8 |
|
Rear tire
|
16/7-8 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
111.1 kg (245.0 pounds) |
|
Power/weight ratio
|
0.0288 HP/kg |
|
Seat height
|
686 mm (27.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
102 mm (4.0 inches) |
|
Wheelbase
|
1016 mm (40.0 inches) |
|
Fuel capacity
|
10.00 litres (2.64 US gallons) |
|
Oil capacity
|
0.90 litres (0.95 US quarts) |
|
Other specifications |
|
Color options
|
Black, Blue, Red, Pink |
|
Starter
|
Electric |
