| BamX's profilation of this bike |
| Having very low cost it exceeds the other models for some levels by real product differentiation. |
|
General information |
|
Model
|

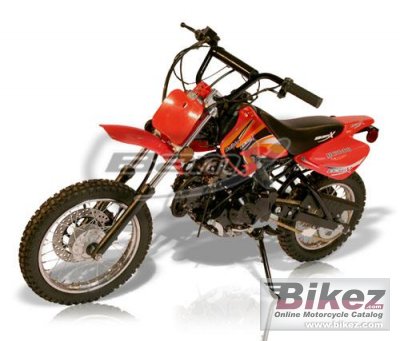

BamX BX70-DB Trailstar |
|
Year of manufacture
|
2011 |
|
Type
|
Minibike, cross |
| Price as new | US$ 999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
72.0 ccm (4.39 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
Horizontal Single Cylinder |
|
Output
|
3.6 HP (2.6 kW)) |
|
Torque
|
4.2 Nm (0.4 kgf-m or 3.1 ft.lbs) @ 5500 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
47.0 x 41.4 mm (1.9 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
C.D.I. |
|
Lubrication system
|
Pressure/Splash |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Dual Front Shocks |
|
Rear suspension
|
Swing Arm Mono Shock |
|
Front tire
|
2.50-12 |
|
Rear tire
|
2.75-14 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
49.9 kg (110.0 pounds) |
|
Power/weight ratio
|
0.0721 HP/kg |
|
Seat height
|
711 mm (28.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
254 mm (10.0 inches) |
|
Fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Oil capacity
|
0.90 litres (0.95 US quarts) |
|
Other specifications |
|
Color options
|
Red, blue |
|
Starter
|
Electric |
