BamX BX500-U4 Tahoe 20122012 BamX BX500-U4 Tahoe specifications, pictures, reviews and rating |

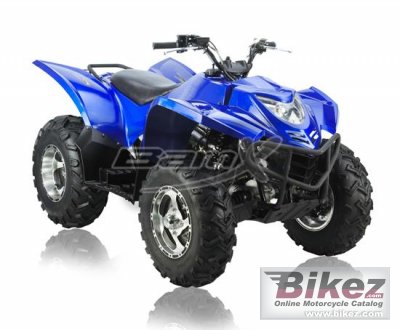

 2012 BamX BX500-U4 Tahoe. Picture credits - BamX. Submit more pictures.
|
| General information | |
|---|---|
| Model name | BamX BX500-U4 Tahoe |
| Year | 2012 |
| Category | ATV |
| Price as new | US$ 5299. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 471.0 ccm (28.74 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 16.1 HP (11.7 kW)) @ 6000 RPM |
| Torque | 35.0 Nm (3.6 kgf-m or 25.8 ft.lbs) @ 5000 RPM |
| Compression | 9.4:1 |
| Bore x stroke | 84.5 x 84.0 mm (3.3 x 3.3 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Lubrication system | Pressure/Splash |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Driveline | L-H-N-R-P |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double swing arm |
| Rear suspension | Independent double swing arm |
| Front tire | 23/8-12 |
| Rear tire | 23/10-12 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Seat | One person seat |
| Physical measures and capacities | |
| Dry weight | 310.0 kg (683.4 pounds) |
| Power/weight ratio | 0.0519 HP/kg |
| Seat height | 870 mm (34.3 inches) If adjustable, lowest setting. |
| Ground clearance | 260 mm (10.2 inches) |
| Wheelbase | 1365 mm (53.7 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Other specifications | |
| Color options | Blue, green camo, brown camo |
| Starter | Electric & kick |
| Light | 12V35W/35W x 2, 12V5W x 2(front) |
