| BamX's profilation of this bike |
| This vehicle is particularly off-road that is built for cross country. It is specifically designed for racing and recreation at the same time. |
| General moped information |
|---|

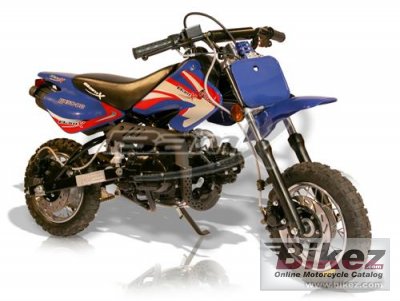

| Model: | BamX BX50-DB Pee Wee |
| Year: | 2011 |
| Category: | Minibike, cross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 849. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 49.50 ccm (3.02 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Engine details: | Horizontal Single Cylinder |
| Power: | 2.00 HP (1.5 kW)) |
| Torque: | 2.80 Nm (0.3 kgf-m or 2.1 ft.lbs) @ 5500 RPM |
| Compression: | 9.0:1 |
| Bore x stroke: | 39.0 x 41.1 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor |
| Ignition: | CDI |
| Lubrication system: | Pressure/Splash |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Dual Front Shocks |
| Rear suspension: | Swing Arm Mono Shock |
| Front tyre: | 2.50-10 |
| Rear tyre: | 2.75-10 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 47.6 kg (105.0 pounds) |
| Power/weight ratio: | 0.0420 HP/kg |
| Seat height: | 610 mm (24.0 inches) If adjustable, lowest setting. |
| Ground clearance: | 178 mm (7.0 inches) |
| Wheelbase: | 1,092 mm (43.0 inches) |
| Fuel capacity: | 4.00 litres (1.06 gallons) |
| Oil capacity: | 1.00 litres (0.07 quarts) |
| Other specifications |
|---|
| Color options: | Red, blue |
| Starter: | Electric |
