| BamX's profilation of this bike |
| Being fully automatic this ATV is ideal and especially attractive for those whose style is life on movement. Sierra personifies comfort alongside with utility and profit. |
|
General information |
|
Motorcycle name
|

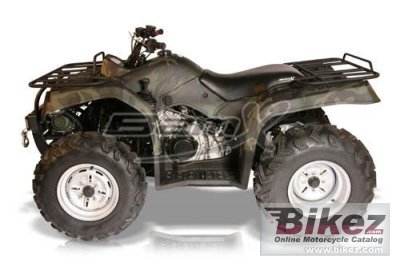

BamX BX400-U4 Sierra |
|
Year of manufacture
|
2012 |
|
Type
|
ATV |
| Price as new | US$ 4999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
387.0 ccm (23.61 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
19.0 HP (13.9 kW)) |
|
Torque
|
25.0 Nm (2.5 kgf-m or 18.4 ft.lbs) @ 5500 RPM |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
83.0 x 71.6 mm (3.3 x 2.8 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Lubrication system
|
Pressure/Splash |
|
Cooling system
|
Oil & air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
CVT Fully Automatic w/Reverse |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Rear suspension
|
Swing Arm |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
266.3 kg (587.0 pounds) |
|
Power/weight ratio
|
0.0714 HP/kg |
|
Seat height
|
864 mm (34.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
254 mm (10.0 inches) |
|
Wheelbase
|
1245 mm (49.0 inches) |
|
Fuel capacity
|
13.50 litres (3.57 US gallons) |
|
Oil capacity
|
1.70 litres (1.8 US quarts) |
|
Other specifications |
|
Color options
|
Green camo, brown camo |
|
Starter
|
Electric |
|
Electrical
|
YTX-20BS battery. |
|
Light
|
12V35W/35W x 2, 12V5W x 2 (front) |
