| BamX's profilation of this bike |
| Like the other 4 stroke ATVs this modification of assaults is compared well with motor cars in the aspect of capacity. 6- Speed engine type lets your assault sound in unison with your mood and surmount any obstacles. |
|
General information |
|
Motorcycle name
|

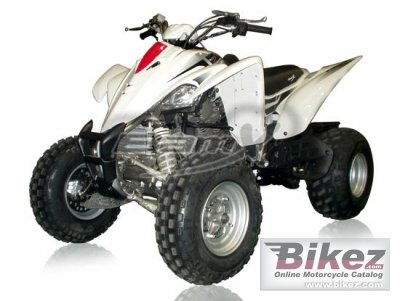

BamX BX350-S Assault |
|
Year model
|
2010 |
|
Type
|
ATV |
| Price as new | US$ 4299. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
348.0 ccm (21.23 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
17.0 HP (12.4 kW)) |
|
Torque
|
23.0 Nm (2.3 kgf-m or 17.0 ft.lbs) @ 5500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
83.0 x 64.5 mm (3.3 x 2.5 inches) |
|
Ignition
|
CDI |
|
Lubrication system
|
Pressure/Splash |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double A-Arm |
|
Rear suspension
|
Swing Arm |
|
Front tire
|
21/7-10 |
|
Rear tire
|
20/10-9 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
193.2 kg (426.0 pounds) |
|
Power/weight ratio
|
0.0880 HP/kg |
|
Seat height
|
813 mm (32.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
152 mm (6.0 inches) |
|
Wheelbase
|
1219 mm (48.0 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Oil capacity
|
1.60 litres (1.69 US quarts) |
|
Other specifications |
|
Color options
|
Black, white, blue |
|
Starter
|
Electric |
|
Comments
|
With reverse |
