| BamX's profilation of this bike |
| These ATVs are four-wheelers that are of multipurpose usage. These vehicles are notable for maneuverability and power (5-speed manual with reverse significantly contributes to it). The model suits perfectly for farming and gardening. |
|
General information |
|
Model name
|

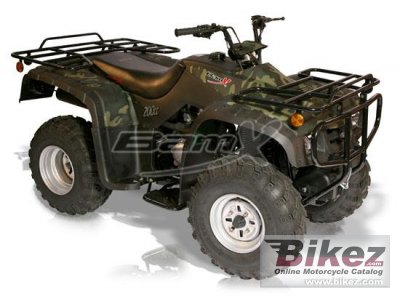

BamX BX200-U Back Country |
|
Year model
|
2012 |
|
Type
|
ATV |
| Price as new | US$ 2499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
197.0 ccm (12.02 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
10.5 HP (7.7 kW)) |
|
Torque
|
15.0 Nm (1.5 kgf-m or 11.1 ft.lbs) @ 5500 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
63.5 x 62.2 mm (2.5 x 2.4 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent |
|
Rear suspension
|
Swing Arm |
|
Front tire
|
22/8-10 |
|
Rear tire
|
22/11-10 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
165.6 kg (365.0 pounds) |
|
Power/weight ratio
|
0.0634 HP/kg |
|
Seat height
|
813 mm (32.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
152 mm (6.0 inches) |
|
Wheelbase
|
1168 mm (46.0 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
Green camo, brown camo |
|
Starter
|
Electric |
|
Electrical
|
12V-14AH battery. |
