| BamX's profilation of this bike |
| Due to a splendid and well thought out construction it is not a problem to get up any hill or override any surface on the charger model like this one. |
|
General information |
|
Motorcycle name
|

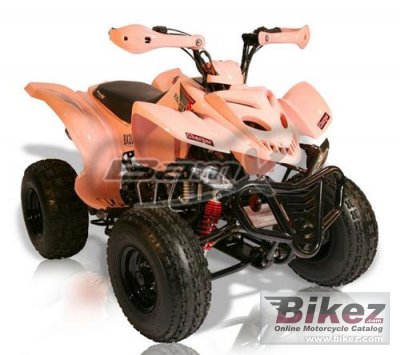

BamX BX200-S Charger |
|
Year
|
2010 |
|
Category
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
197.0 ccm (12.02 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
10.5 HP (7.7 kW)) |
|
Torque
|
15.0 Nm (1.5 kgf-m or 11.1 ft.lbs) @ 5500 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
63.5 x 62.0 mm (2.5 x 2.4 inches) |
|
Lubrication system
|
Pressure/Splash |
|
Cooling system
|
Liquid |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Shopping Cart |
|
Rear suspension
|
Swing Arm |
|
Front tire
|
19/7-8 |
|
Rear tire
|
18/10-8 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
127.0 kg (280.0 pounds) |
|
Power/weight ratio
|
0.0827 HP/kg |
|
Seat height
|
762 mm (30.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
127 mm (5.0 inches) |
|
Wheelbase
|
1041 mm (41.0 inches) |
|
Oil capacity
|
0.90 litres (0.95 US quarts) |
|
Other specifications |
|
Color options
|
Red, blue, black, pink |
|
Starter
|
Electric |
|
Comments
|
4 Speed Manual w/reverse |
